Start with the customer’s lot label, then find the packing record, plating rack, furnace load, forming machine run and wire coil number, and finish at the mill certificate. Paper traceability usually breaks where lots merge: at packing, at the furnace and at plating.
Start from the returned box and the customer lot label

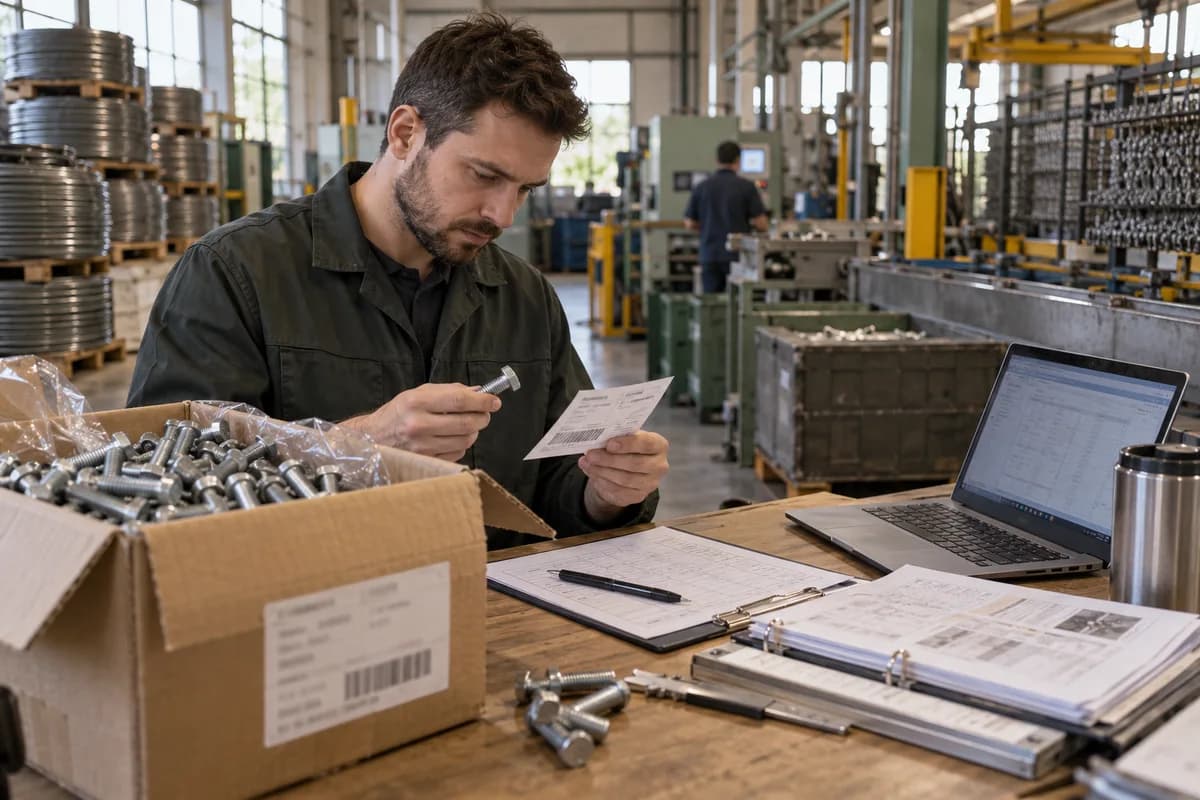

A returned bolt arrives with a customer lot number and perhaps a part number. Write both down, then ask for the label, the packing slip and the date received. These decide where you begin. Photograph the label first.
Open the packing record for that customer lot. It should list the production lots packed into it. If the packer combined leftovers from two lots to fill a carton, the trail already forks.
Quarantine every lot named at this step. Do not wait for the cause. Tag the pallets.
- Customer lot number and label photo
- Packing slip and dispatch date
- Production lots listed on the packing record
- Stock still in your warehouse from the same lots
Plating and coating
Next comes the finishing step: zinc flake, electroplating or phosphate. Ask which rack or barrel load carried the suspect lot, and which bath tank on which shift. Get the bake time too.
Plating shops, whether in-house or subcontracted, tend to mix parts by barrel capacity. A load may hold two or three of your lots plus another customer’s. Hydrogen embrittlement baking records, thickness readings and salt spray results belong to that load.
If the plater returned parts with only a quantity and a date, the paper trail ends here. Fix that with a returned-goods slip carrying lot numbers. No slip, no trail.
Heat treatment batch and furnace records
Hardening and tempering are where the strength is made, so most field failures lead here. Find the furnace load sheet: furnace ID, belt speed or soak time, temperature chart, quench oil condition and the tempering pass.
Compare the hardness and tensile test results for that load to the lot’s requirement. A tempering furnace that drifted low for one shift will show on the chart, though not on the delivery note. Read the chart.
Check what else shared the load. A mixed load of two grades means one lot may have been treated to the other’s recipe.
- Furnace ID and load number
- Temperature chart for hardening and tempering
- Quench medium temperature and condition
- Hardness test readings taken from the load
Forming, wire coil and mill certificate
Before heat treatment sits the header or thread roller. Find the machine run: operator, shift, die set and the wire coil number loaded. Coils change mid-lot more often than people expect. A lot may span two coils.
The coil number leads to the supplier’s mill certificate, with its heat number and chemistry. A wrong carbon or boron level appears here, long before any furnace is blamed.
Tick each link against a document you can actually produce. A link you remember is not a link.
Where paper traceability breaks and what to change
The breaks are predictable: merged lots at packing, mixed furnace loads, coil changes with no note, and subcontract returns with no lot detail. Each costs hours and widens the recall. Four breaks, four fixes.
Give every production lot one number that travels from coil to carton. Record, at each hand-off, the numbers going in and out.
Try a mock recall next month on one old lot, with a stopwatch.
Fastener lot trace worksheet
A tracing form on one page, a line for each stage from customer return to mill certificate. Columns record the lot number in, the lot number out, the document used as proof, who holds it, and whether it could be produced within an hour. A final block lists every other customer lot sharing a plating rack, furnace load or coil.
Open a blank worksheet to printQuestions owners ask
How long should a trace to the mill certificate take?
A supplier should be able to complete it within a single shift. If it takes days of hunting through binders, treat that as a finding in itself.
What if plating is done by a subcontractor?
Ask them for load records tied to your lot numbers. Put that requirement on the purchase order so it arrives with every return, not only during a complaint.
Do we need barcodes on every carton?
They help, because manual lot entry produces typing errors. At minimum, each carton label should carry the production lot number in a form a scanner can read.
Should unaffected lots from the same coil be held?
Usually yes until the cause is known. Lots sharing a coil, furnace load or plating rack with the failed lot are the ones most likely to carry the same fault.
