A flash test record should hold the module serial, Pmax, Voc, Isc, fill factor, measured temperature, the reference cell used, the date and station, and the power bin assigned. Keep the I-V curve file and any electroluminescence image linked to the same serial.
What the sun simulator actually measures

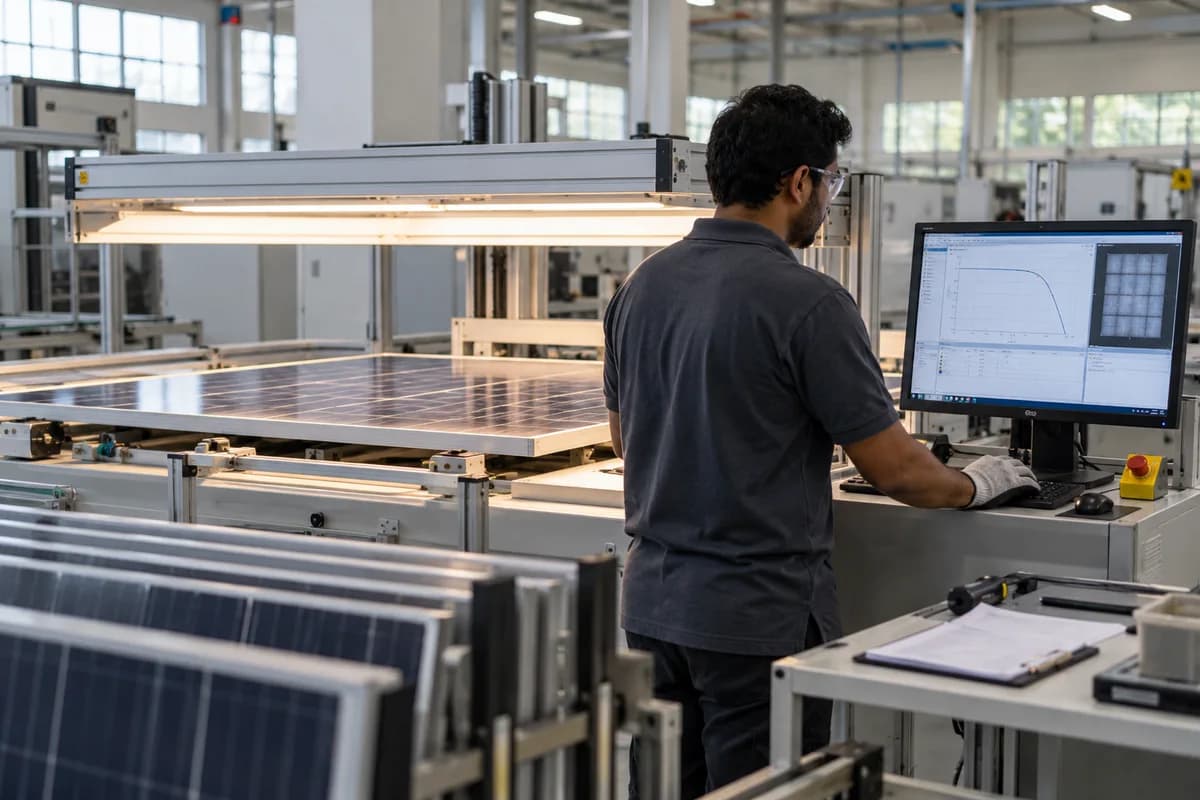

A flash tester fires a short pulse of light at the module and records the current and voltage while a load sweeps across the range. The result is an I-V curve. From it the software reads the values that matter to the buyer. Think of it as a short, bright photograph of the module’s electrical behaviour, taken in a few milliseconds.
Pmax is the peak power. Voc is the open circuit voltage and Isc is the short circuit current. Fill factor describes how square the curve is, and a low value hints at resistance or a mismatched cell.
The simulator corrects these values to standard test conditions. Trust depends on the readings behind that step. That correction only means something if the temperature and irradiance readings behind it are recorded.
- Pmax, Voc and Isc
- Voltage and current at maximum power
- Fill factor
- Series and shunt resistance, where the tester reports them
- Module temperature at the flash
Record the conditions, not just the numbers
Two modules with the same Pmax can have been measured under different conditions. The record should name the reference cell or reference module used for calibration, its calibration date and the lamp or pulse settings.
Add the ambient and module temperature sensor readings. If the tester drifted through a shift, you will see it in the reference cell checks long before you see it in the customer complaints.
Daily reference module checks belong in the same system. A passed check at the start of the shift is what gives the day’s records their weight. One quiet check, every shift. That habit is what makes a record believable months later, when a buyer disputes a power figure and the auditor asks how the tester was known to be right.
- Reference cell or reference module ID and calibration due date
- Temperature sensor readings
- Station and tester ID
- Operator and shift
Tie each flash to the serial and the power bin
The serial number printed on the module is the key. The flash record must be written against it, and a rework or retest should add a new line rather than replace the old one. Retests are normal. A module flashed three times to reach a higher bin should leave a trail.
The power bin comes from Pmax. Modules that land just under a bin edge cause arguments with buyers. The bin rule and the value that decided it should both sit in the record. Keep the rule version too, because bin edges change when a product is revised.
The label printed on the back, the carton list and the packing document should all read from this one record. Typing the bin by hand into three places invites a mismatch.
Where electroluminescence images belong
An electroluminescence image shows cracked cells, broken fingers and dark areas that an I-V curve may not reveal. It is a picture, so it tends to end up in a folder named after the date. The picture is useful on its own, yet it becomes evidence only when someone can find it from the serial number years later during a claim.
Store the image file against the same serial, with the camera station, the exposure setting and a grade of pass or reject. Note the defect type in a short list: micro crack, finger interruption, shunt, dark cell.
Those defect words are worth more than the images alone, because they can be counted. Once you can count them by cell lot and by stringer, a pattern appears.
Check your own record against a returned module
Take a module that came back from the field. Look it up by serial and see whether you can answer four questions. What did it flash at, under what reference, which bin did it ship in, and what did the EL image look like?
Any question you cannot answer shows a missing field. Add that field to the record before the next lot, and note it on the line’s changeover sheet. Short fix, long payoff. A missing field costs minutes to add today and weeks to reconstruct later.
Flash test record template
A single template page with four blocks. Identity holds the module serial, model, cell lot and string layout. Measurement holds Pmax, Voc, Isc, voltage and current at maximum power, fill factor and module temperature. Calibration holds the reference cell ID, its due date and the daily check result. Release holds the power bin, the EL image file name, defect grade and inspector.
Open a blank worksheet to printQuestions owners ask
Is the flash test report the same as a certificate?
No. The flash report is a factory measurement of one module. Certification covers a design type and is issued by an accredited laboratory against a named standard.
Should the I-V curve file be kept or only the summary values?
Keep the curve file. The summary lets you sort and bin, while the curve lets an engineer see mismatch or shading signs on a module that came back.
Who needs to see the power bin?
Sales, the packing team and the buyer. The bin should be read from the flash record so that the label, the carton list and the invoice agree.
How do we know the tester has drifted?
Flash a reference module at the start of each shift and log the result. A trend in that reference reading shows drift before bad modules ship.
