A calibration system gives every gauge an ID, a calibration deadline and a status, then stamps that ID on each reading it takes. Add gauge R&R studies for critical features. An auditor can then pick any part and trace its reading back to a certified instrument.
Every gauge needs a register entry, not just a sticker
Most shops keep a coloured dot on the gauge and a sheet in the quality office. The dot says nothing about who last used it or what it measured. Auditors ask for more. A sticker can be peeled, swapped or faded, and then nobody can say what the gauge was last checked against. Records outlast stickers.
Give each micrometer, bore gauge, thread plug, height gauge and go/no-go ring a unique ID. Record its range, resolution, owner, storage location and the certificate from its last calibration. Note the lab, the reference standard used and the as-found condition.
As-found data matters. If a gauge came back out of tolerance, every part measured since its last good check is in doubt.
- Gauge ID, type, range and resolution
- Calibration lab and certificate file
- As-found and as-left readings
- Interval, last date and next due date
- Status: in service, quarantined or retired
Due dates only work when the system enforces them
A spreadsheet with a red column is easy to ignore on a busy Friday. The operator at the grinding cell never opens it. Enforcement has to sit where the reading is entered. On a rushed day the gauge simply gets used, because the machine is waiting and the batch is late. That is how an expired micrometer ends up on a customer’s bore.
When a gauge passes its due date, the inspection screen should refuse its ID. Better still, it should warn a week ahead and tell the metrology lead which gauges are about to lapse. Intervals should shorten when a gauge drifts. They can stretch when its history is clean.
Lost, dropped and damaged gauges need a quick way to be pulled. One tap to quarantine beats a hunt through folders.
Link each reading to the gauge that took it
This is the link an ISO 9001 auditor tests most. They pick a finished batch, find the inspection sheet and ask which instrument measured the bore diameter. Then they ask for that instrument’s certificate as it stood on the day of the check.

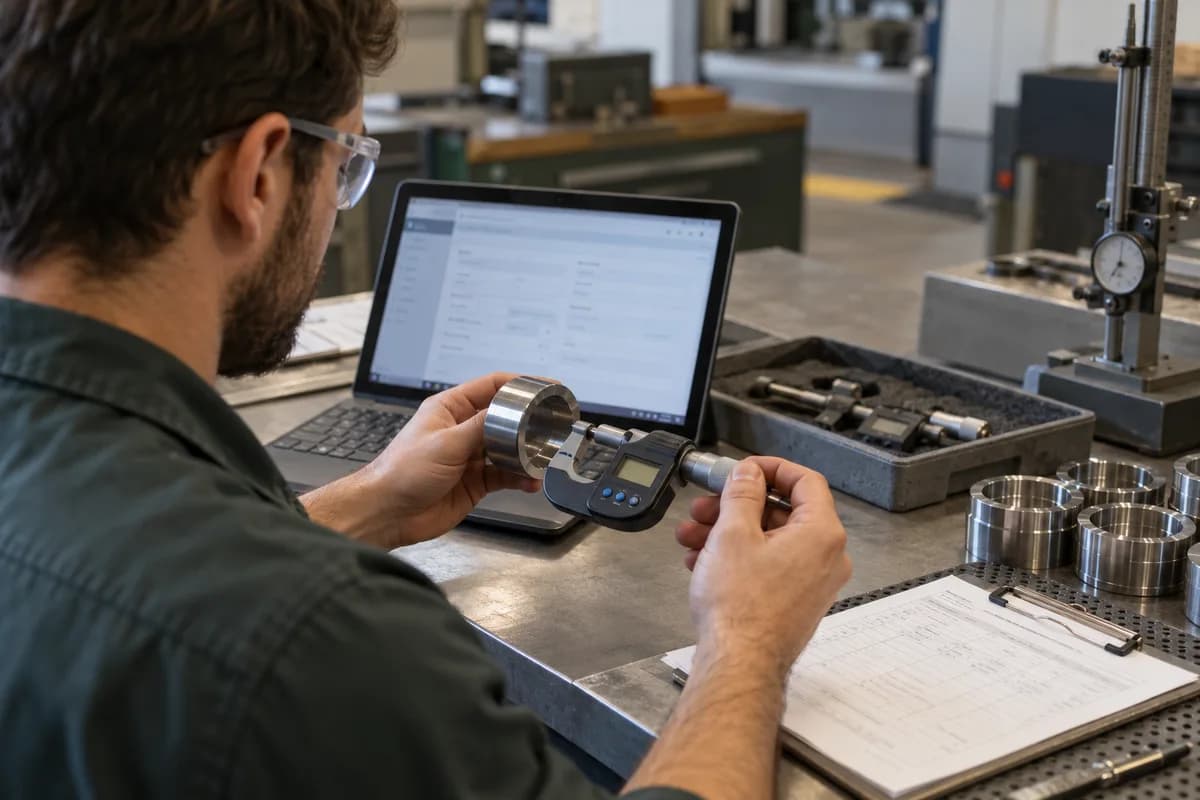

A handwritten gauge number on a paper sheet is easy to get wrong. A digital record captures the batch, the characteristic, the value, the gauge ID, the inspector and the time together. Nothing gets copied by hand.
If a gauge later fails calibration, one query lists every batch it touched. That turns a week of searching into an afternoon. Pulling a gauge is cheaper than recalling parts. Treat the register as insurance.
- Part number, drawing revision and characteristic
- Measured value with unit
- Gauge ID and calibration status at the time
- Inspector, shift and timestamp
- Batch or heat lot of the material
Gauge R&R tells you if the gauge is good enough
A calibrated gauge can still be a poor judge. Gauge R&R studies measure how much variation comes from the instrument and from the people using it, set against the tolerance on the part. A tight tolerance on a bearing seat needs a better gauge than a loose one on a bracket. Many shops skip the study on older gauges because it feels like paperwork. The first one usually surprises them. A cheap dial bore gauge in tired hands can eat most of the tolerance.
Run the study with several operators and a sample of parts spanning the tolerance range. Each part is measured more than once. The result shows repeatability, which is the gauge against itself, and reproducibility, which is operator against operator. Keep the sample honest. Pick parts from the real process, not a tidy tray.
Store each study against the gauge and the characteristic. When a drawing tolerance tightens, the old study shows whether the same gauge can still be trusted.
- Gauge, characteristic and tolerance
- Operators and number of trials
- Repeatability and reproducibility results
- Decision: accept, accept with limits, or replace
Start with the gauges that guard your riskiest features
Digitising a thousand instruments in one go is unrealistic. Begin with the gauges behind customer-critical dimensions and safety features, because an auditor or a complaint will reach those first. Do the dull work first.
Load the register, set the intervals and move those readings onto tablets at the inspection bench. Keep the paper sheets running alongside for four weeks. Then retire them.
This week, walk the floor with a list and count gauges without an ID. That number tells you how far you have to go.
Gauge register and reading log
A two-sided sheet. Side one is the gauge register with columns for ID, type, range, resolution, location, interval, last calibration, next due, certificate number and status. Side two is the reading log with columns for batch, part, characteristic, value, gauge ID, inspector and date, with a block at the foot for gauge R&R results.
Open a blank worksheet to printQuestions owners ask
How often should a gauge be calibrated?
There is no single interval. Start with the maker’s advice and your auditor’s expectations, then adjust using the gauge’s history. Gauges that drift or see heavy use need shorter intervals.
What does gauge R&R actually measure?
It measures how much of the spread in readings comes from the measuring system rather than the parts. It splits that into repeatability and reproducibility, then compares both with the part tolerance.
What happens when a gauge fails its calibration?
Quarantine it, then review everything it measured since its last good calibration. The register should list those batches so quality can decide whether to recheck, sort or inform the customer.
Can a spreadsheet do this job?
For a handful of gauges, yes. It struggles once readings need to link to gauge IDs automatically and block expired instruments at the point of entry.
