Service and installation records for medical equipment makers

The record opens when the unit leaves the factory. Capture the serial number, model, software version, customer, ship date and the accessories packed with it. A ventilator, defibrillator or infusion pump that ships in March and is installed in June has two dates, and the warranty clause may care about only one of them.

Many makers open a service file only when the first complaint arrives. By then the installation details sit in an engineer’s notebook. The dispatch date waits in the accounts department. Which of the two the warranty clause follows is anyone’s guess.

One record from day one removes that hunt. It also fixes the warranty start. No argument.

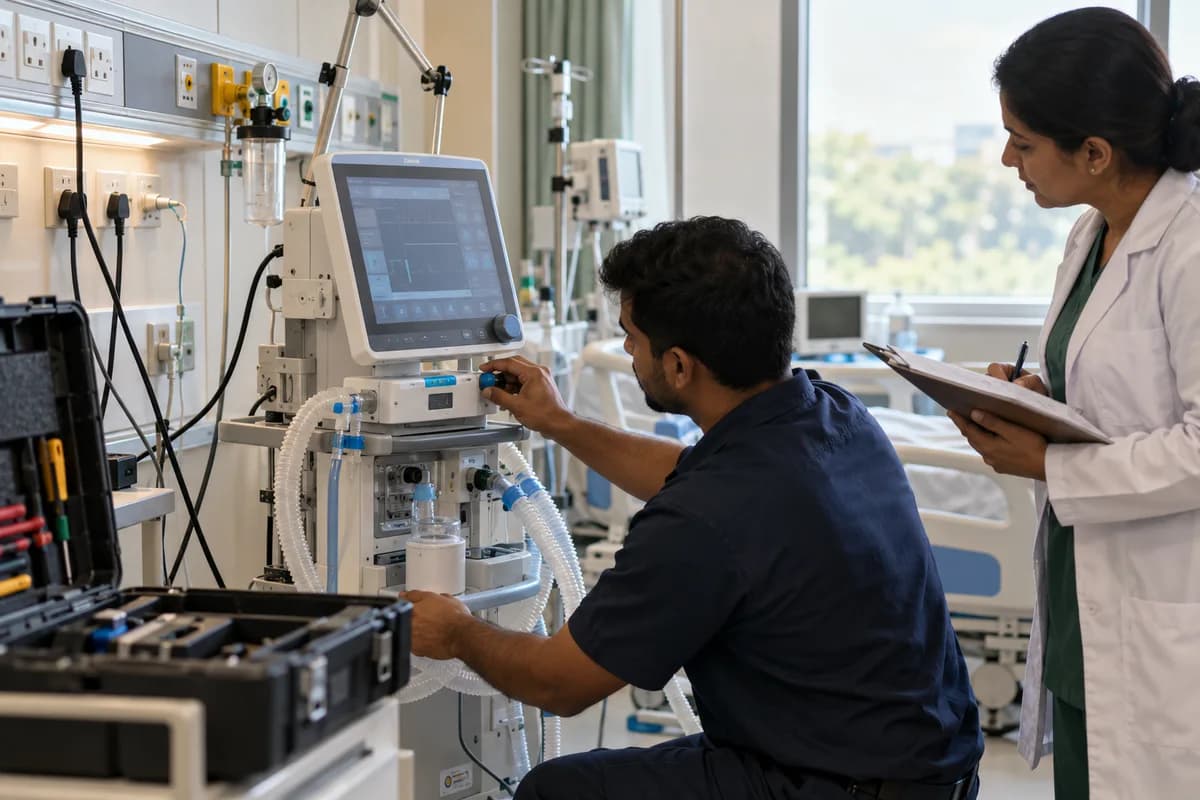

The installer visits the hospital, unpacks the unit, checks mains voltage and earthing, runs the acceptance tests and trains the nurses and technicians. Each step should be a line on a form. Not a paragraph in an email.

Collect the biomedical engineer’s signature on a handover sheet. Store the scan against the serial. Note the room, the department and the biomedical engineer’s name, because those details matter two years later.

A photograph of the installed unit and its nameplate saves a visit when a spare part query arrives. Also record the ward contact, since the person who signed the handover is often not the person who calls with a fault.

Preventive maintenance depends on dates and usage. An ultrasound scanner may need a visit every quarter. A syringe pump may need one each year, with an occlusion alarm test and a battery discharge check. Put the interval on the model, and let each serial inherit it. A hospital that skips two visits in a row will often phone with a failure that the visit would have caught.

Then list next-due visits by engineer and by town. Plan the route. Do not react to the call.

After each visit, log the checklist. Log the calibration readings and the parts replaced too. Skipped visits become visible, and so does the pattern of one unit that always fails in the same week of each quarter.

Log each part fitted against the serial, such as an SpO2 probe, ECG trunk cable, flow sensor or compressor filter, with its part number and lot. If a supplier recalls a power board, you can list every unit that received it. Over a year the data shows whether a failure is a bad batch of a power board, a hot equipment room or an operator habit.

Breakdown calls need a fault code or a short cause, not just the word broken. After a year, count the causes by model. The top three tell you which spares to hold in the van and which design fixes to raise with engineering.

Record the response time and the repair time separately. They answer different questions.

The first question on any call is whether the unit is under warranty or a service contract. The answer should appear the moment the serial is typed. No lookup. Extended cover bought later should be added as a second line, so the original dates stay intact for reference.

Show the start date, end date, type of cover and any extended terms. Flag units that expire within the next sixty days, so sales can offer a service contract.

As a first step, pick your ten most recent installations and build their records from dispatch to date. You will see which fields you wished you had collected.
