Why the floor keeps cutting to an old drawing revision

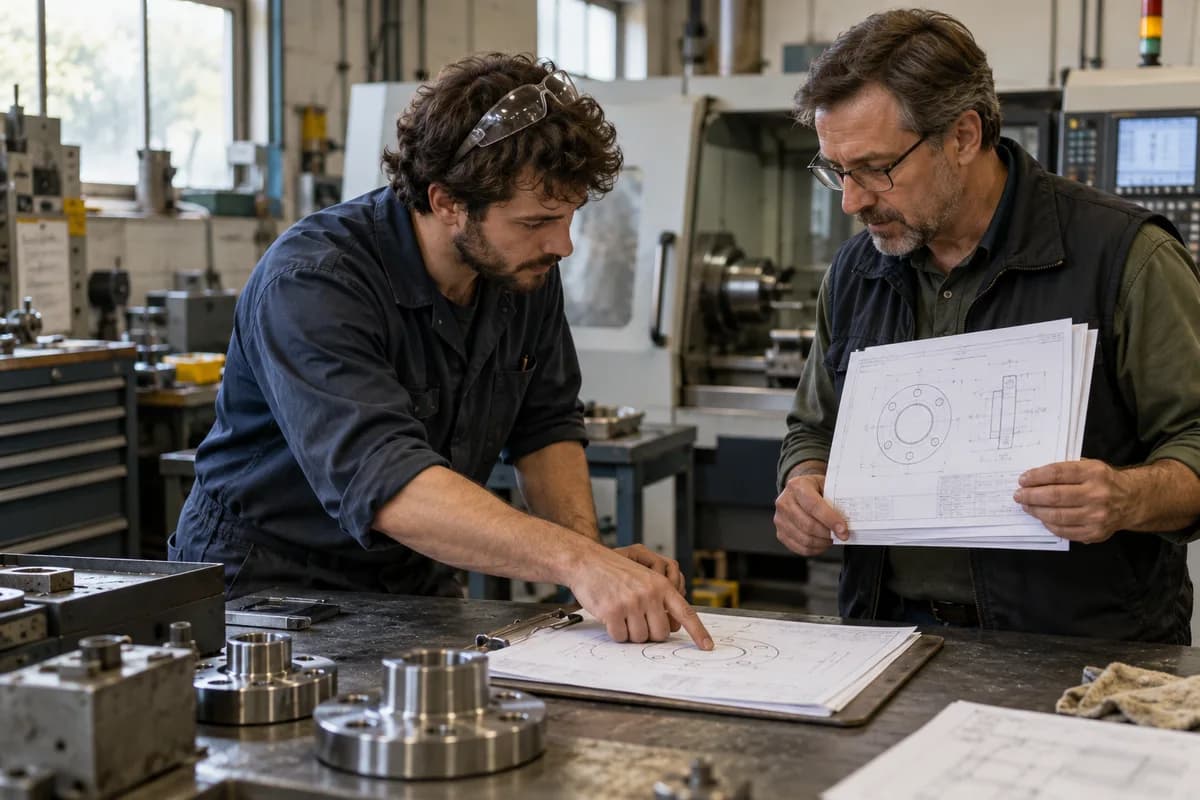

A customer emails Rev C of a flange drawing on Monday, and the estimator saves the PDF beside Rev B without telling the planner. The planner printed Rev B three days earlier for a job card already clipped at the lathe, and never hears of the change. That is the gap. It is small and costly.

The drawing changed, but the paper in the operator’s hand did not, and the operator has no reason to doubt a print that carries the right part number. Nobody lied. Nobody was careless. That is why it keeps happening.

Trace one scrap job backwards. Who received the revision, where did the file land, who printed the sheet, and which operator held it when the first bad part came off the spindle? Most shops find two or three handovers that depend entirely on somebody remembering to speak up, with nothing written down to catch a lapse.

Drawings are only half the trouble. A purchase order amendment can change the quantity, the bar stock grade, the surface finish note or the dispatch date, and the shop hears of it by phone.

The planner edits a spreadsheet row, but the job card printed last week still shows the old bar stock grade and the old dispatch date.

Treat an amendment like a drawing revision. It needs a number, a date and a named releaser, and every open card carrying the older number gets flagged on the day the amendment arrives.

A revision lock ties the job card to one drawing revision and PO line, so a newer release puts every open card for that part on hold. Nobody can book operation time against a held card until the planner reviews the change and releases it again with a note.

The card prints the revision letter in large type beside the release date, and the operator checks it against the title block of the print in two seconds.

The mismatch shows at the first chuck. It does not wait for final inspection, when sixty pieces sit on the tray and the only choice left is scrap or a deviation.

A lock stops fresh mistakes, but it does not answer what to do with forty pieces already roughed out to Rev B. Three people must agree. The planner, the quality inspector and the customer’s buyer each hold one piece of the answer.

Write the decision on the card. Name the affected operations, say whether the finished stock can be reworked on the grinder or must be scrapped, and record who approved the deviation.

Then walk the floor after every release, collect the superseded prints from each machine, stamp them void and file one copy in the quality office. Old drawings left in machine-side pockets and tool-crib drawers are how a closed problem reopens six months later on a repeat order.

Pick one customer first. Choose the customer who revises most often, then build the register for parts with the costliest scrap: part number, current revision, release date, releaser and open job cards.

Keep the register alongside your usual process for four weeks and tally every stale print it catches, noting which handover missed it and which operator held the sheet.

Then list the three doors a revision can enter your shop today, such as email, a portal and a phone call, and close the weakest one this week. Close one door at a time.
