Sheets suit one owner. A linked record stores each result against its part, characteristic and drawing revision, so you can search by lot, trend a bore and trace a gauge. Move when a customer query takes longer than an hour to answer, or when two sheets give different readings for one lot.
How per operator sheets grow

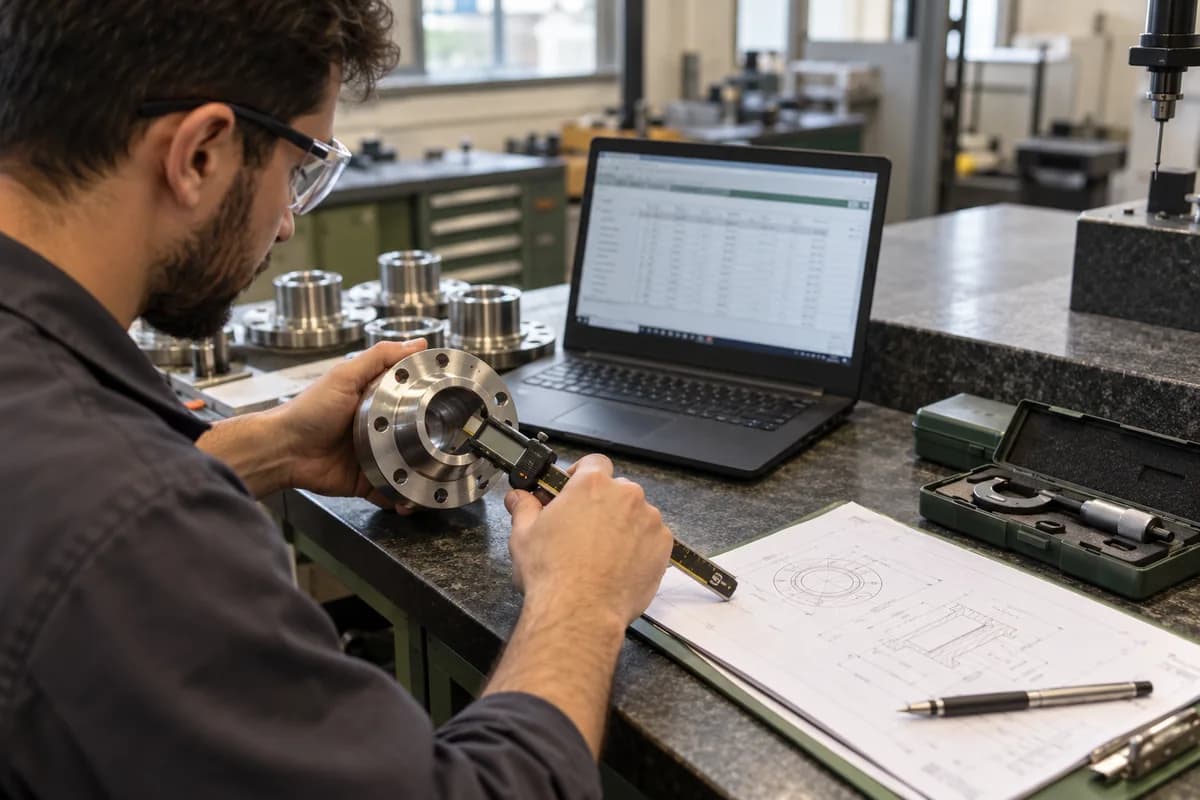

Most shops start with a template. The CMM operator keeps one workbook, the turning cell keeps another, and the final inspector keeps a third, each saved by date and initials in a shared folder.
It works well enough. It stops working the day a drawing revision changes, a customer asks for last year’s data, or the person who built the file leaves the company.
Nothing is wrong with Excel itself. The weakness is that a sheet records a result but never the part, balloon number, gauge or drawing revision that the result belongs to.
What a linked inspection record holds
Each reading is stored against the part number, drawing revision, characteristic balloon number, nominal, tolerance and instrument, and the job, lot, serial and operator travel along with it. Fixed fields allow questions across jobs.
Show every bore diameter reading on this part since revision C, or every result taken with gauge 214 by the night shift. Sheets cannot do that.
The record also keeps the plan. When revision D adds a new characteristic, the plan changes once, and every new job inherits the extra balloon without anyone editing a template.
- Part, revision and balloon number
- Nominal, tolerance and actual
- Instrument ID and operator
- Job, lot, serial and date
Where sheets break first
The first break is revision. A sheet built from revision B keeps being used after revision C arrives, so a tolerance stays wrong for weeks and nobody notices until a part is rejected. The second is search.
Finding every result for one lot means opening many workbooks, and during a customer complaint that hunt takes hours or sometimes days. The third is trend.
Spotting a bore that drifts towards its upper limit needs readings in one place, not scattered across the workbooks of every shift and inspector. The fourth is control. Anyone can overwrite a cell, and the sheet keeps no history showing who changed a reading, when it changed or what the earlier value was.
- Wrong revision still in use
- Slow search during complaints
- No trend across jobs
- Cells edited with no audit trail
What a linked record costs you in effort
It needs discipline up front. Someone must enter the characteristics from each drawing and keep them in step with every revision, which takes a few weeks of set up for an active range. Operators need fast entry.
If a tablet at the machine is slower than a clipboard, people drift back to paper and the whole record starts to go stale within a month. Test the feeds from calipers.
Ask whether digital calipers, micrometers and CMM output files can send readings straight into the record from the gauge bench, which removes most typing slips. Run both on a few parts. Compare what each can answer about a shipped lot, then count the minutes each one takes to produce the revision, instrument and reading for every characteristic.
Choosing for your shop
Stay with sheets if you run few parts, rarely change drawings and one person owns inspection, but add a locked template and a naming rule. Move to a linked record when you serve aerospace or defence customers who ask for characteristic level data, or when complaints take too long to answer.
Try one test. Pick a shipped lot and ask for every reading, instrument and drawing revision behind it, and if the answer takes more than an hour, start the move.
Inspection record comparison sheet
A single-page comparison with two columns, sheets and linked record, and rows for revision control, search time, trend, instrument link, audit trail and set up effort. Each row has room for a score. The bottom block holds a timed lot retrieval test, with fields for start time, end time, the number of readings found and any gaps found.
Open a blank worksheet to printQuestions owners ask
Is Excel acceptable for inspection data?
For low volumes with stable drawings, yes. Add a locked template, a naming rule and a single named owner, and review the folder each month so old revisions do not linger.
What is a characteristic in inspection?
It is one dimension on a drawing. It carries a balloon number, a nominal value, a tolerance and a planned method of measurement such as a bore gauge or CMM probe.
Can digital instruments feed the record directly?
Often yes. Many calipers, micrometers and CMMs can output readings or files, which removes retyping and the slips that come with it, so confirm the output format with the vendor.
How do we test the move before committing?
Run a few active parts in parallel. Compare how fast each method answers a lot retrieval question and a trend question, and keep the minutes on a simple sheet so the result is not disputed.
